Please note: This machine can only be used on the whole production line to separate the extracted germ from the mixture and cannot be used alone ！！！ As a gravity germ separator, this machine is only used in the production line and is used in conjunction with a corn degerminator to select the germ from a mixture of corn kernels and corn germs.
1. This separator can be used to select corn germ from a mixture of corn germ and broken corn particles.
2. The separator also can be as a destoner to select cereals, broken grains, durum wheat semolina, maize and wheat germ, seeds, oil-seeds, coffee beans, peas, beans and nuts., etc.
Working principle

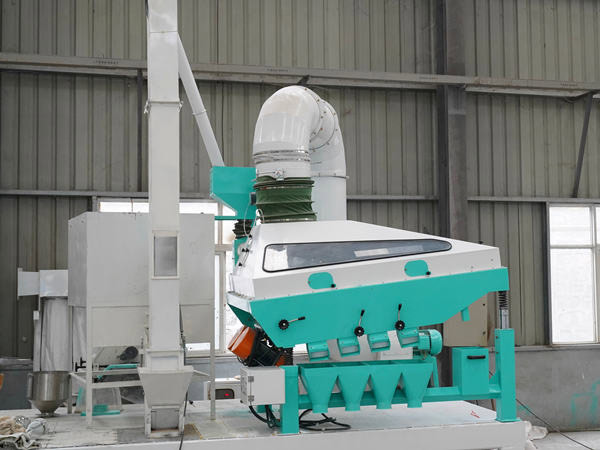

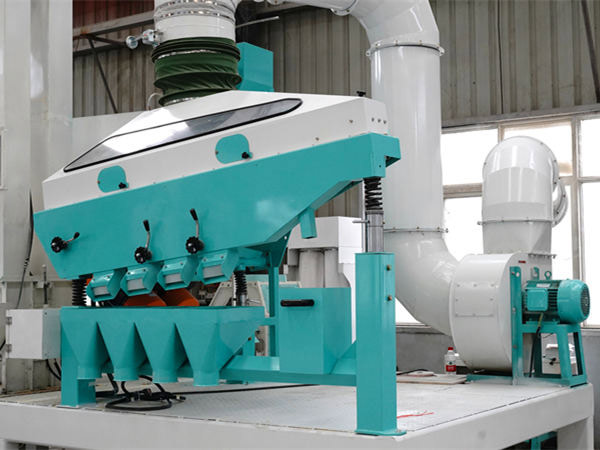

Totally enclosed, vacuum operated machine consisting of a supporting frame, an oscillating deck, an exhaust hood and a feed control device.
The selected products are conveyed to an outlet having four fixed outlets and three diverting valves for products division.
Oscillating frame with aluminium working deck covered with easily removable wire mesh or stainless steel screen.
Constant loading is ensured by the feed group provided with a spring loaded valve for air- tight operation. Large polycarbonate windows allow visual control of working deck.
The technological setting up can be performed with machine in operation by means of devices adjusting the longitudinal and cross angle.
FEATURE
Optional – Autoregulation system
The load control system provides a continuous flow meter placed at the exit of the selected product and a control unit equipped with the touch panel.
Operation is simple and intuitive
Once properly adjusted the gravity separator and stored the reference value, the PLC activates a control loop via an inverter that feeds the vibromotors.
Finished product constant quality
This system automatically handles the adjustment of the machine so that variations in flow or density does not affect the optimal and constant quality of the selected products.
Self-R&D with quality assurance
The material structure and production process of this machine have been structurally improved, and the product quality is reliable;
